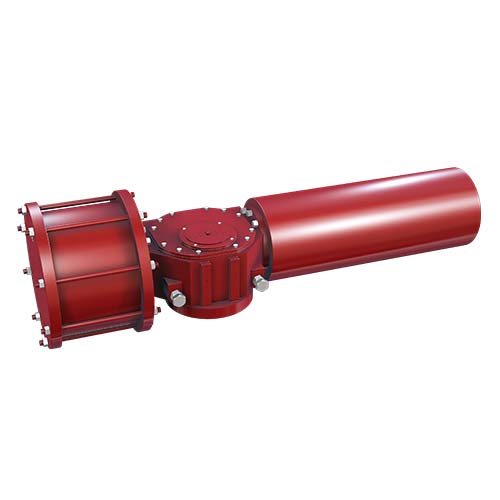

Fork Pneumatic Actuator

Dual acting cylinder:


1. Rotating angle: 90 (+6 degree)


2. Bottom of cylinder block is hole output, flange connection conforms to ISO5211 standard.


3. Cylinder diameter range 200 mm - 1100 mm


4. Torque range


Dual action: 839Nm - 114354 Nm


Single use: 594 Nm - 76127 Nm


5. Low-temperature products can be used for high-temperature products ranging from - 40 to 80 degrees Celsius to 20 to 120 degrees Celsius.


6. The actuator can be equipped with bottom turbine-type manual mechanism, side handwheel and hydraulic manual device.


7. Actuators can provide fault opening and fault closing
