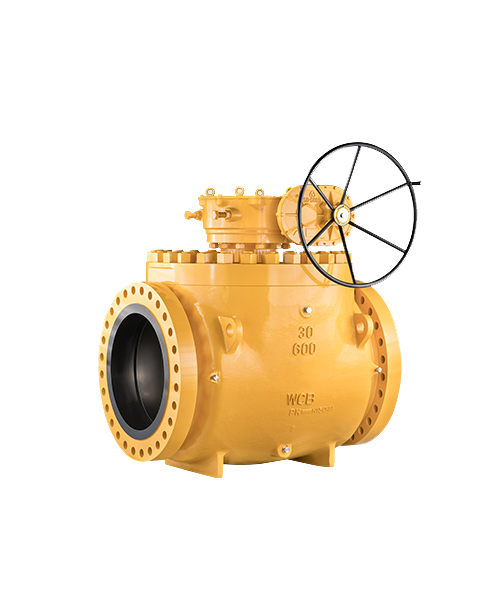

Top-mounted Turbine Ball Valve

Product Information

On-line maintenance and parts replacement can be realized.

Dual Blocking and Emission Functions

Blow-out stem

Design of self-decompression in cavity

Fire protection design and anti-static design.

Optional grease injection system for stem seat

Soft and hard seals are optional

performance parameter:

Pressure Level: CLASS 150 ~ CLASS 1500 (PN10 ~ PN260)

Nominal Path: 2'~48'(DN50~DN1200)

Temperature range: - 46 ~450 C

Main materials: carbon steel, stainless steel, etc.

Spherical materials: A105+ENP, F6a/F304/F316+H.F.

Seat materials: PTFE, RPTFE, PEEK, F6a/F304/F316+H.F.

Operating modes: manual, pneumatic, electric, hydraulic, etc.
