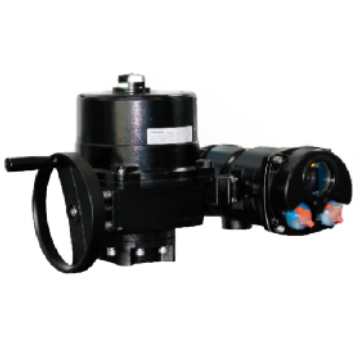

Super Intelligent Type
Torque range:
100-20,000 N.m.
Switching time:
19-155 S
Environmental temperature:
- 25 +70.
Control mode:
Switching/adjusting type
Display mode:
LCD liquid crystal opening index
Field control:
Non-intrusive field control knob
Data Recording Intelligent Diagnosis:
Fault Diagnosis Using Infrared Remote Control Coordination Menu
Power supply voltage:
Single phase: power supply (+10%); Hz (+5%)
50 Hz (24, 220, 230, 240 Volts)
60 Hz (24, 110, 120, 220, 230, 240 Volts)
Three-phase: power supply (+10%); Hz (+5%)
50 Hz (220, 240, 380, 400, 460, 500, 525 and 550 Volts)
60 Hz (208, 220, 230, 240, 380, 440, 460, 480, 575 and 600 Volts)
DC: 24 V (+10%) (if there are other voltage requirements, you can contact the manufacturer to customize)
Menu operation:
Open Settings (Remote Controller Settings)
Configuration settings (such as valve position, maximum opening, maximum torque, etc.)
