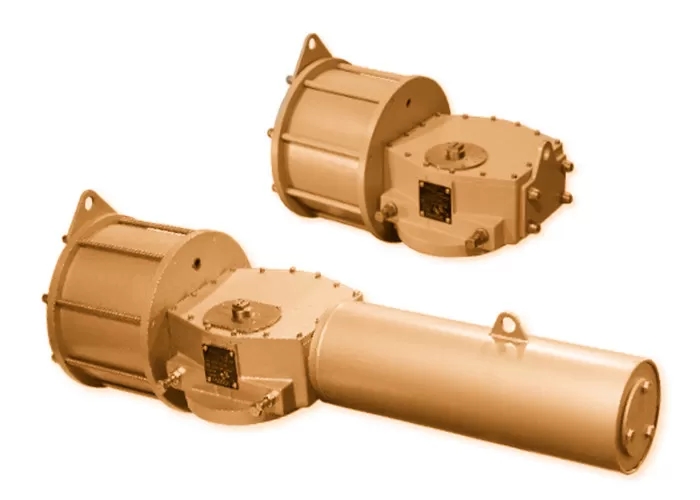

Spring Return Aluminium Alloy Scotch Yoke Pneumatic Actuator Heavy Duty

Detailed Product Description

Name: Heavy Duty Pneumatic Actuator Power: Pneumatic Type

Structure: Scotch Yoke Color: Blue, Red,grey

OEM: Acceptable    Material: Aluminium Alloy

Spring return Aluminium alloy Scotch Yoke Pneumatic Actuator heavy duty

Product Specifications

Power Source: Pneumatic

Product Type: Pneumatic Actuator

Actuation: Spring-return, double-acting

Certifications: SIL 3, CSA, FM, ATEX, IECEx, ABS Atex Directive 94/9 PED 97/23/EC IP66 / IP67M

Control Type: On/Off

Valve Type: Ball, butterfly, plug, triple offset, other quarter-turn devices

Torque/Thrust: Spring-return 495N.m~120000N.m, Double-acting 495N.m~240000N.m

Operating Pressure: 2 ~ 8 bar


Single acting actuator can provide 120000 N.m torque output;

Maximum working pressure is 8 bar;

Two independent travel adjustment bolts, can be in the range of +/-6 to regulate valve switch position;

Comply with IP65 protection class;

Module design, provides maximized operational flexibility in selection and combination of power sylinder, body and spring pack depending on project requirement. Additional benefit would be less cost for maintainence and stocking of parts.


Plywood case, wooden case or as per your request

Optional Accessories

APL Limit Switch

Solenoid Valve
