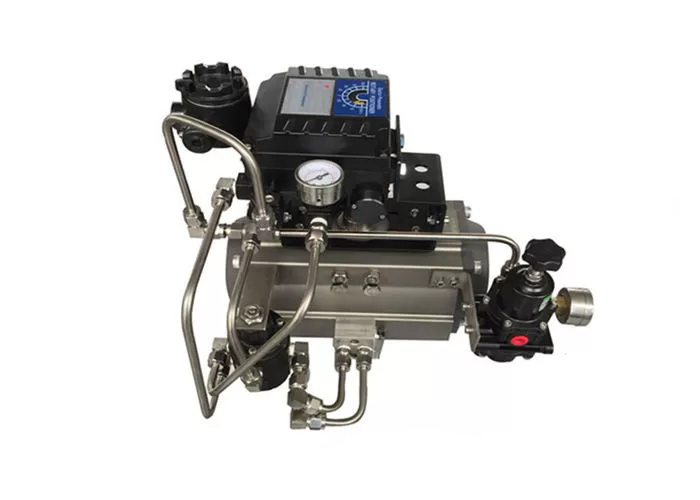

Pneumatic Rotary Actuator

Detailed Product Description

Application: General Media: Gas,Oil,Water Ect.

Material: Standard Or As Customers' Requirement Industry: Marine, Power, Chemisitry,Water Treatment

Brand: Alpha

Professional OEM Pneumatic Operated Ball Valve , Rack And Pinion Actuator

Specifications - Pneumatic Rotary Actuator

Operating media

Dry or lubricated air, or the non-corrosive gases

The maximum particle diameter must less than 30μm

Air supply pressure

The minimum supply pressure is 2.5 Bar

The maximum supply pressure is 8 Bar

Operating temperature


Low temperature:-35°C~+80°C

High temperature:-15°C~+150°C

Travel adjustment

Have adjustment range of ±5°

Application Either indoor or outdoor

Features - Pneumatic Rotary Actuator

A. Interface between actuator and valve: 4 or 8 bolt orifices according to DIN/ISO

5211, the axle assembles orifice according to DIN 3337

B. Interface between actuator and control valve: 7100 D/S-7350 D/S according to

NAMUR or VDI/VDE 3845, 7040 D/S-7090 D/S connecting via the adapter plate

C. Interface between actuator and signal box: According to VDI/VDE 3845
